CD series of square or rectangular multi-cone diffusers constructed from high grade aluminum extrusions (6063-T6), are ideal for most domestic and commercial projects. These diffusers provide both better air diffusion and aesthetic look to match with the interior of the occupied zone.

Description:

Manufacture:

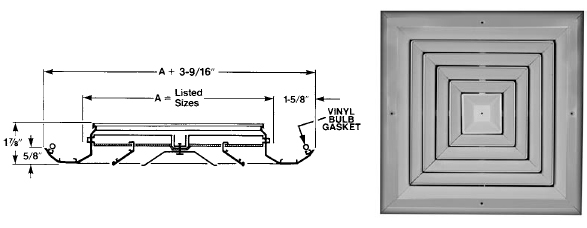

CD series of square or rectangular multi-cone diffusers are constructed from high-grade aluminum extrusion with mitered and cleated joints. At the outer edge of the frame is a specially engineered channel, which retains an extruded flexible vinyl gasket that provides a positive air seal. These diffusers are manufactured in 3” increments of size and are provided with removable core. An optional mill finished extruded aluminum opposed blade damper mounts on diffusers.

Sizes: Square and rectangular patterns are available.
Listed sizes: Square diffusers neck size in inches.

Features:

All 6063 grade aluminum construction.
High performance vinyl gasket sealing.
Counter sunk screw holes on flange.
Ability to manufacture non-standard sizes and ceiling tile replacements.
Optional opposed blade damper operable from face.
